StreamScope XM Verifier ATSC 3.0 Analyzer Software

ATSC 3.0 stream verification software

StreamScope XM Verifier

StreamScope® XM Verifier is the new Windows-based web app for analyzing, rendering, and recording ATSC 3.0 broadcast streams from RF, Ethernet, and PCAP file inputs.

Installs on Windows 10 computers

Installed on a Windows® 10 PC, Verifier displays real-time graphs, charts, and tables in your web browser. You can view stream bitrates, signaling data, basic and advanced RF measurements, PLP parameters, LDPC iterations, and more.

For ATSC 3.0 demos and field trials

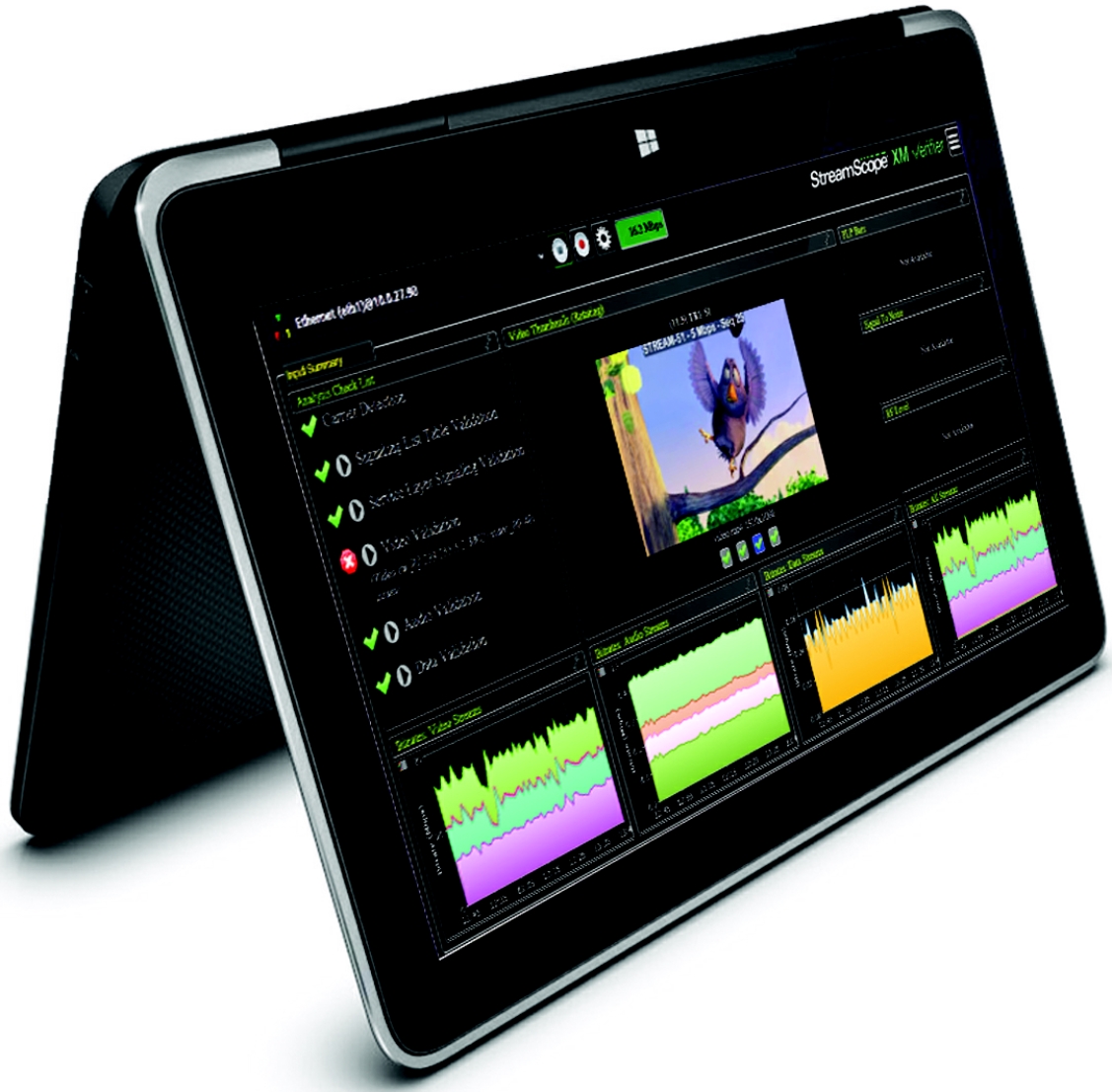

StreamScope XM Verifier Input Summary View

StreamScope XM Verifier is a Windows-based app for analyzing ATSC 3.0 broadcast streams. (Click to enlarge.)

Developed by the company that helped create ATSC 3.0, StreamScope XM Verifier is a cost-effective, entry-level way for broadcasters to verify the quality of their ATSC 3.0 deployments. In addition, installed on laptop PCs, Verifier lowers your operational costs by reducing the number of tools engineers need to carry on site.

  • Verifies RF, Ethernet, and file ATSC 3.0 inputs
  • Handles ROUTE, MMTP, and STLTP protocols

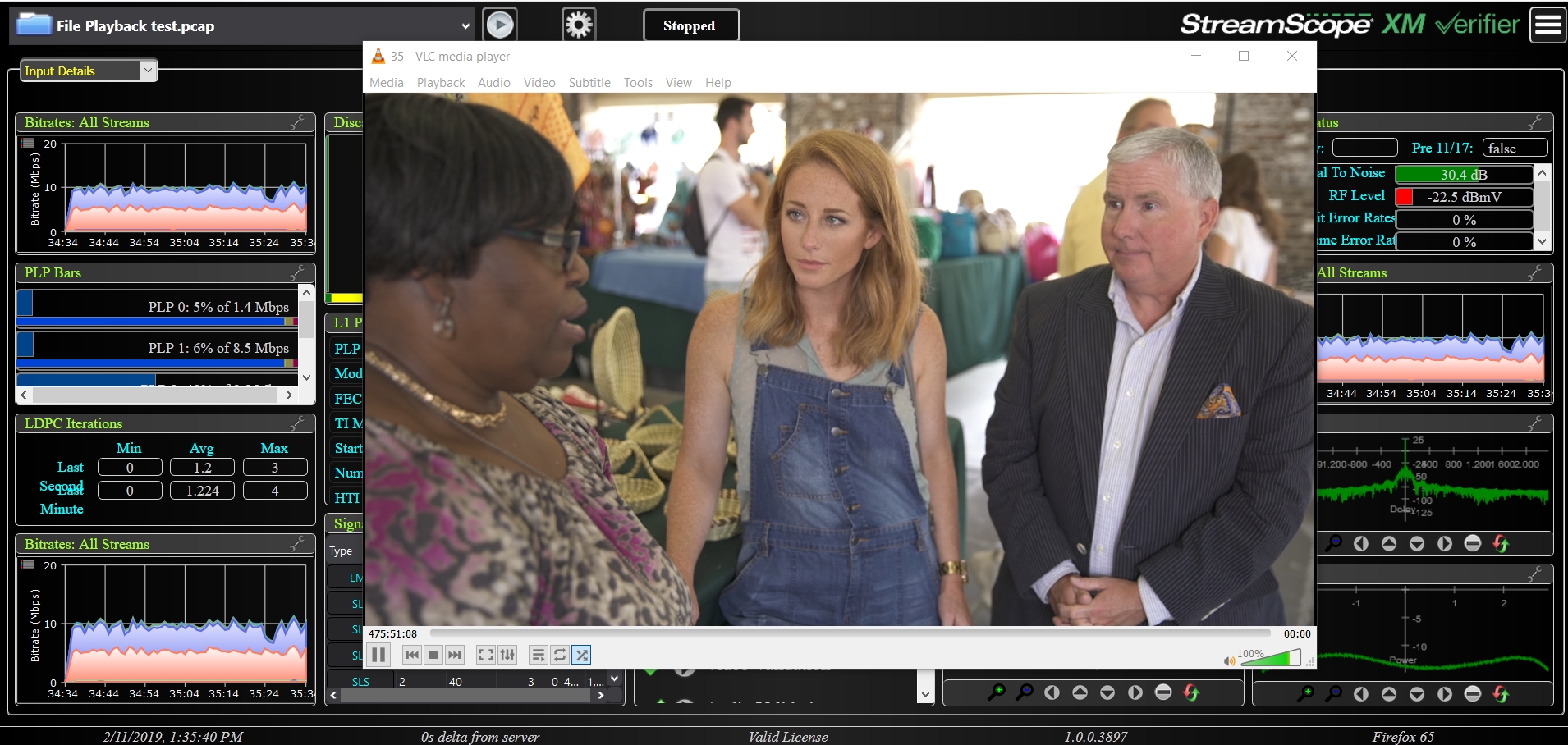

  • Renders real-time video and audio streams
  • Records and manages PCAP files for playback
  • Supports PCI cards or USB dongles for RF reception
  • Displays 40 real-time graphs, charts, and tables
    • Quick Status and Analysis Checklist charts
    • Signaling and system tables
    • Video, audio, and data bitrates
    • RF level and Signal to Noise (SNR) graphs
    • Constellations, impulse, spectrum, and transfer graphs
    • PLP bar graphs and histograms
    • L1 basic, detail, and PLP data
    • Bootstrap and subframe data
    • BCH frame and modulation error rates
    • Average and maximum LDPC iterations
    • Discarded and malformed packets
    • and more
  • Provides customizable dashboards
  • Rotates video thumbnails for services
  • Logs messages for troubleshooting

Click to enlarge.

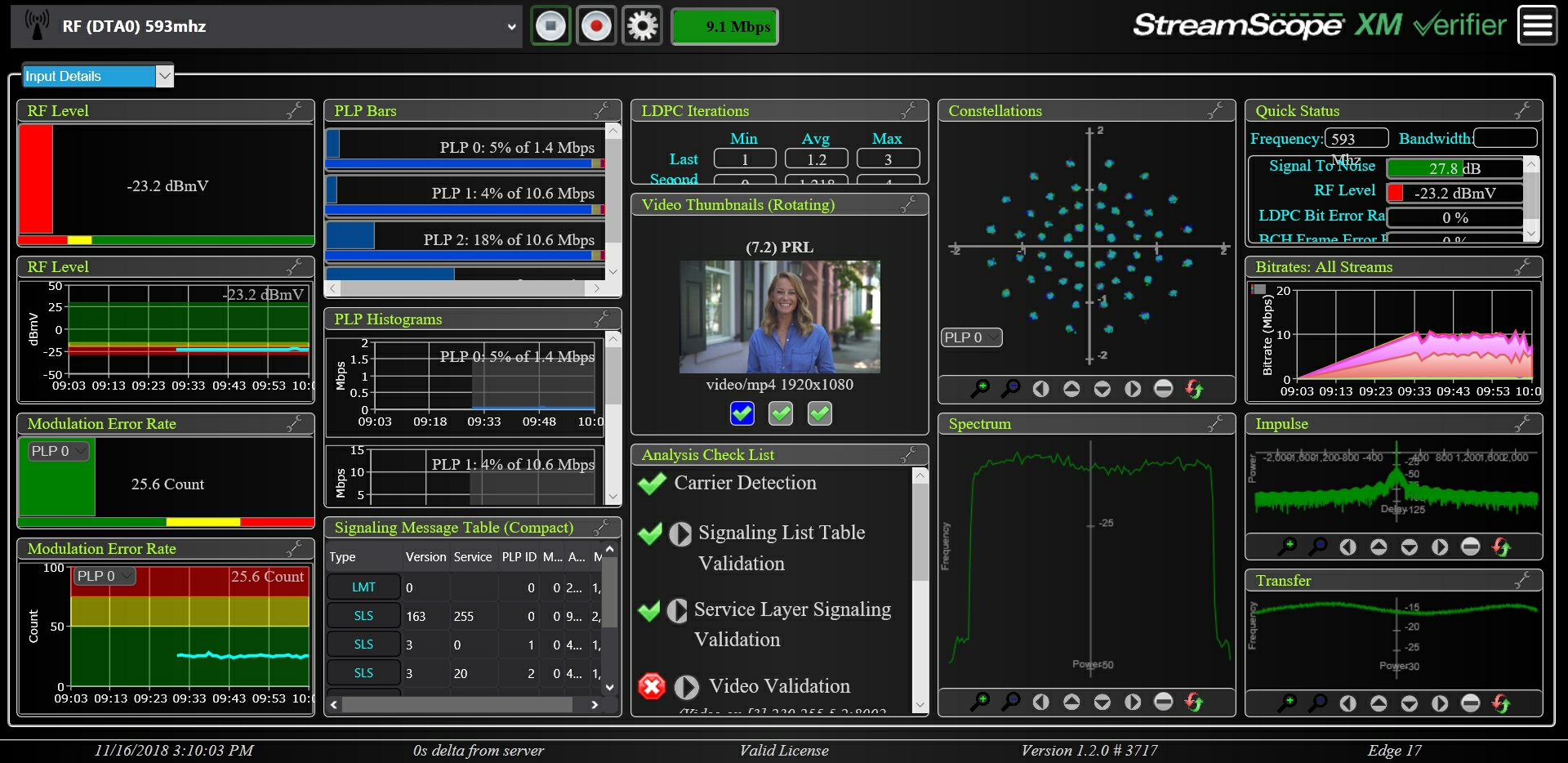

Input Summary View Input Details View

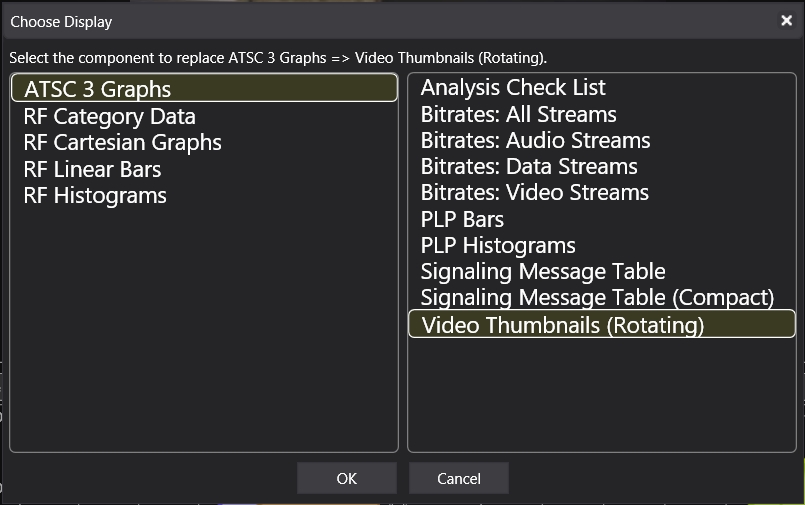

 Input Config Dialog Choose Display Dialog

2018 Future Product Innovation Awards 2018 Product Innovation Awards

"StreamScope XM Verifier is a Windows-based software visualization tool that allows station managers and field staff to get a comprehensive view of their ATSC 3.0 service at a glance.” - TV Technology
