portable MPEG analyzer

StreamScope MT-60 HDT MPEG analyzer

The StreamScope MT-60 portable analyzer, with an optional high-def touchscreen, makes troubleshooting MPEG transport streams faster and easier.

Comprehensive MPEG analysis

The MT-60P analyzes video and audio quality, regulatory compliance, RF signals, IP routes, PIDs, EPGs, GOP frames, and more. You can configure analysis rules and parameters for your troubleshooting needs.

With multiple-input network connectivity

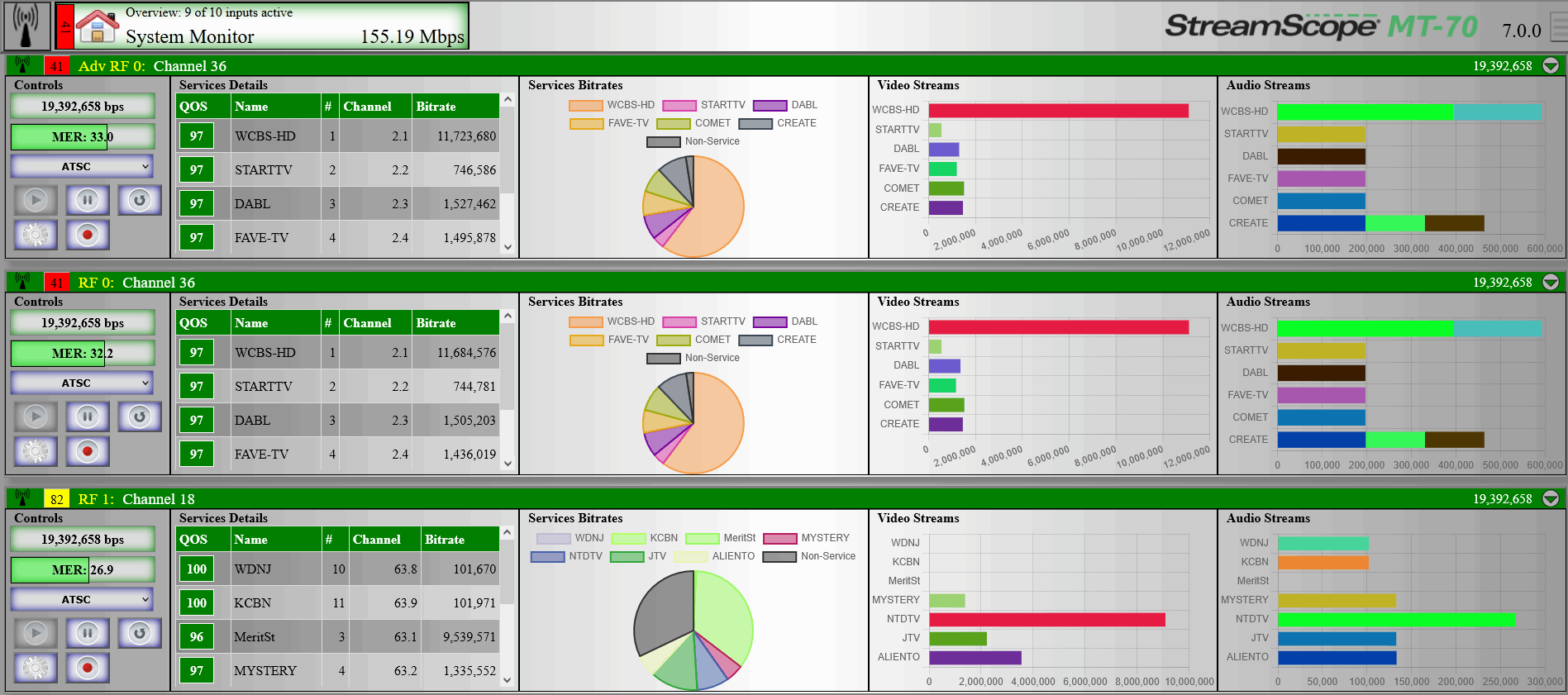

StreamScope MT-60 System Monitor Overview

The StreamScope MT-60 user interface makes MPEG analysis fast and easy. (Click to enlarge.)

The MT-60P supports up to ten simultaneous RF, SMPTE, ASI, QAM, DVB, 1 GigE, and 10 GigE inputs, and includes Continuous Transport Stream Recorder (CTR) and Web Analyzer. Multiple users can log in on-site or remotely. For network QoS, MT-60Ps integrate with StreamScope TS remote monitors and the StreamScope Enterprise management system.

To view a free recorded webinar, click StreamScope MT-60.

StreamScope MT-60P features:

  • Handles 64/256 QAM, ASI, Quad ASI, 1GigE/10GigE, 8-VSB, and DVB inputs
  • With 10 GigE interface, analyzes up to 10 inputs at a time (20 MDI IP routes)
  • RF, DVB, SCTE-35, SCTE-142, ISDB, MDI IP analysis and more
  • ATSC 608/708, SCTE 20/21, and DTH closed captioning verification, decoding, and recording
  • MPEG 2/4 SD/HD video rendering, thumbnails, buffer and bitrate graphs
  • Web-based Continuous Transport Stream Recorder (CTR) for postmortem troubleshooting.
  • Web-based Web Analyzer for convenient DTV performance and QoS monitoring.
  • HEVC analysis for HD and 4K video quality
  • Real-time PCR jitter analysis for synchronization
  • Transport stream and log file recordings, and ASI playout options
  • Patented PSIP/SI cross-table consistency analysis
  • Audio loudness, buffer, and dialnorm graphs, with triggered recordings of CALM Act violations
  • 12-tuner RF input card option for multiple simultaneous RF analyses.
  • RF MER/BER signal-to-noise-ratio graphs
  • Past and present EPG program guides and metadata
  • Frame-by-frame Group of Pictures (GOP) analysis of I/B/P frames
  • Client-based IGMP configuration, VLAN tagging, and IP multicast support
  • SCTE-18 EAS message analysis and logging
  • Optional SCTE-35 digital cue tone analysis
  • Integration with StreamScope RM remote monitors and the StreamScope Enterprise management system.
  • StreamScope XM Combo upgrade option for easy migration to ATSC 3.0.
  • Rugged aluminum construction with shock-absorbing rubber corners
  • Carry bag and shipping hard case

StreamScope MT-60P specifications:

  • Screen (standard): 17" 1280 x 1024 px LCD with anti-glare glass
  • Screen (HDT): 17" 1920 x 1080 px 16:9 HD touch screen
  • CPU: Intel Xeon quad-core 3.5 GHz 10 Mb cache
  • RAM: 2 x 8 DDR3 (16GB total)
  • Hard Drive: 1TB SATA disk
  • Video Card: EVGA nVidia GT 710 1GB
  • Expansion slots: Five full-length
  • Data Ports:
    • Eight USB 3.0
    • Two USB 2.0
    • Two GigE RJ-45 LAN
    • One D-type parallel port
  • Video ports: VGA, HDMI, and DVI
  • Audio port: 7.1 HD
  • Optical Drive:Slim DVD-RW
  • Power Supply: 650W Active PFC 80 Plus ultraquiet
  • Case: Rugged aluminum with rubber corners
  • Speakers: Two built-in 3-watt
  • Keyboard: 104-key full-size with touchpad
  • Carrying case: Padded with wheels
  • OS: Ubuntu
  • Size: 17.05" H x 13.62" W x 8.9" D
  • Weight: 26.5 lbs (12 kg)
  • Environmental: Operating temp: 0-50 C, operating humidity: 10%-90%

Specifications subject to change.

Click to enlarge

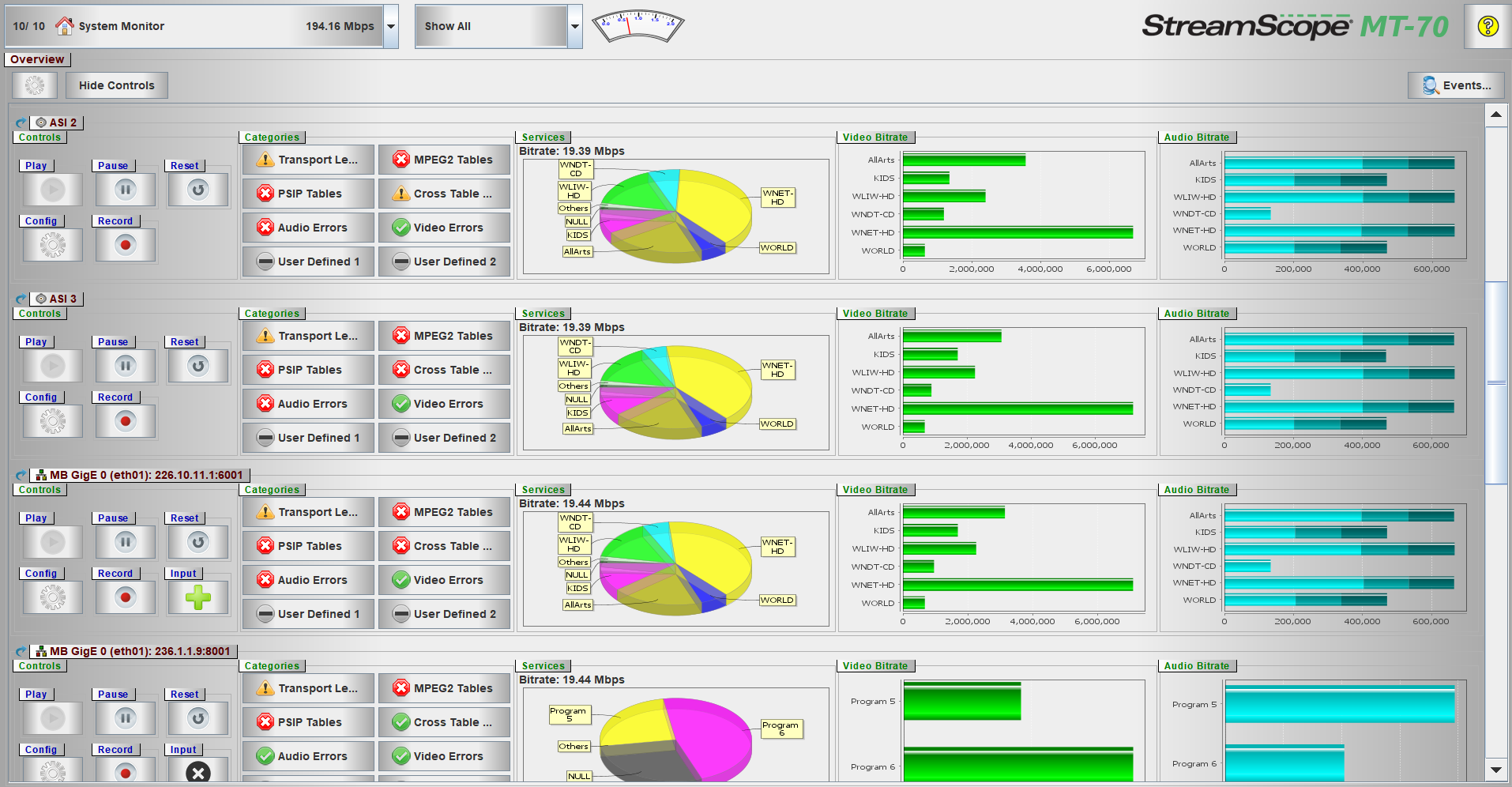

StreamScope MT-60 System Monitor View StreamScope MT-60 Transport Summary View

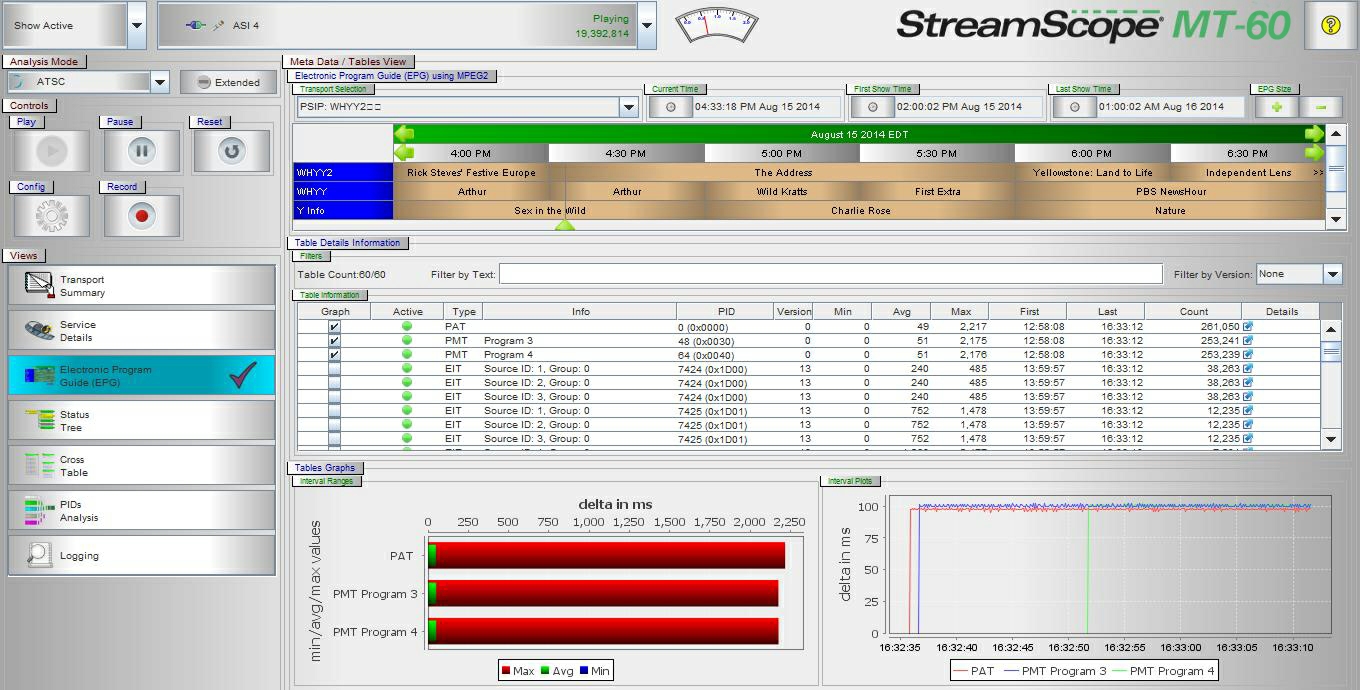

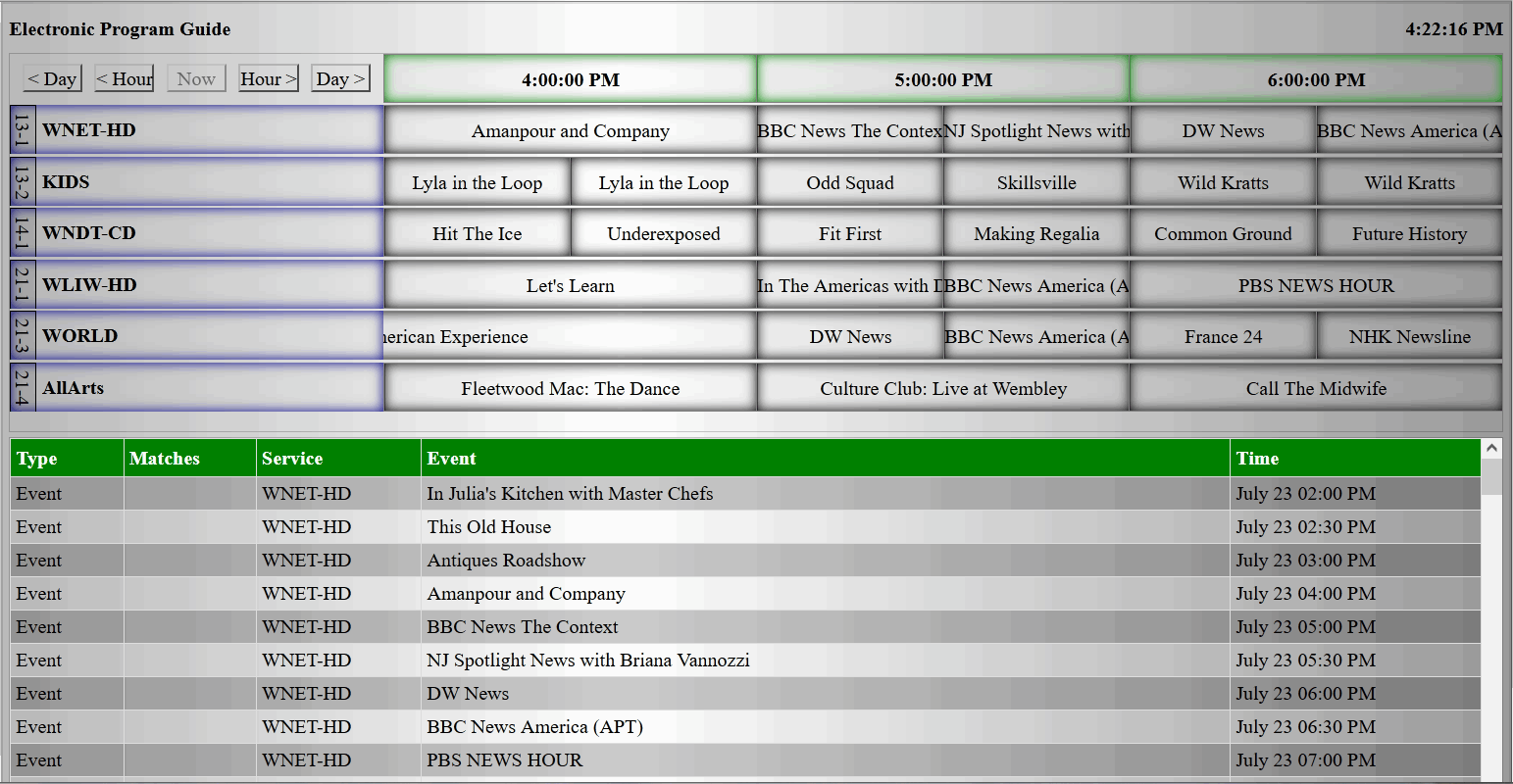

StreamScope MT-60 Service Details View StreamScope MT-60 EPG View
StreamScope MT-60 Continuous Recorder StreamScope MT-60 Web Analyzer
