StreamScope MT-60R MPEG Analyzer

Designed for studio and headend installations, the StreamScope MT-60R is a state-of-the-art MPEG analyzer for centralized transport stream troubleshooting across DTV networks.

Centralized MPEG analysis

This full-featured rackmount server supports RF, SMPTE, ASI, QAM, DVB, 1 GigE, and 10 GigE inputs. It analyzes up to ten inputs at a time, monitors video and audio quality, verifies standards compliance, and includes continuous transport stream recording.

With multiple inputs and remote monitoring

StreamScope MT-60 System Monitor Overview

StreamScope MT-60R can analyze up to ten MPEG inputs simultaneously. (Click to enlarge.)

Fully integrated with StreamScope remote monitors and the StreamScope Enterprise management system, the MT-60R comprehensively analyzes video and audio from a convenient central location, providing at-a-glance analysis on-site or via the Internet. It's a field-proven tool for maintaining DTV QoS.


To view a free recorded webinar, click StreamScope MT-60.

StreamScope MT-60R features:

  • Comprehensive real-time and file-based MPEG analysis
  • 64/256 QAM, ASI, Quad ASI, 1GigE/10GigE, 8-VSB, and DVB inputs
  • With 10 GigE interface, analyzes up to 10 inputs at a time (20 MDI IP routes)
  • RF, DVB, SCTE-35, SCTE-142, ISDB, MDI IP analysis and more
  • MPEG 2/4 SD/HD video rendering, thumbnails, buffer and bitrate graphs
  • Web-based Continuous Transport Stream Recorder (CTR) for postmortem troubleshooting.
  • Web-based Web Analyzer for convenient DTV performance and QoS monitoring.
  • HEVC analysis for HD and 4K video quality
  • Real-time PCR jitter analysis for synchronization
  • Transport stream and log file recordings, and ASI playout options
  • Patented PSIP/SI cross-table consistency analysis
  • Audio loudness, buffer, and dialnorm graphs, with triggered recordings of CALM Act violations
  • 12-tuner RF input card option for multiple simultaneous RF analyses.
  • RF MER/BER signal-to-noise-ratio graphs
  • Past and present EPG program guides and metadata
  • 608/708 closed captioning verification, decoding, and recording
  • Frame-by-frame Group of Pictures (GOP) analysis of I/B/P frames
  • Client-based IGMP configuration, VLAN tagging, and IP multicast support
  • SCTE-18 EAS message analysis and logging
  • Optional SCTE-35 digital cue tone analysis
  • Integration with StreamScope RM remote monitors and the StreamScope Enterprise management system.
  • StreamScope XM Combo upgrade option for easy migration to ATSC 3.0.

StreamScope MT-60R specifications:

  • 4U rackmount server with 20" sliding rail kit
  • Size: 7.0" H x 19.0" W x 20.8" D
  • Weight: 43.5 lbs (19.7 kg)
  • CPU: Intel Xeon quad-core 3.5 GHz 10 Mb cache
  • RAM: 2 x 8 DDR3 (16GB total)
  • Hard Drive: 1TB 3.5" SATA disk
  • Video Card: EVGA nVidia GT 710 1GB
  • Expansion slots: Five full-length
  • Data Ports:
    • Eight USB 3.0
    • Two USB 2.0
    • Two GigE RJ-45 LAN
    • One D-type parallel port
  • Video ports: VGA, HDMI, and DVI
  • Audio port: 7.1 HD
  • Optical Drive:Slim DVD-RW
  • Power Supply: 650W Active PFC 80 Plus ultraquiet
  • OS: Ubuntu
  • Environmental: Operating temp: 0-45 C, operating humidity: 10%-90%

Specifications subject to change.

Click to enlarge


StreamScope MT-60 System Monitor View StreamScope MT-60 Transport Summary View
StreamScope MT-60 Service Details View StreamScope MT-60 EPG View

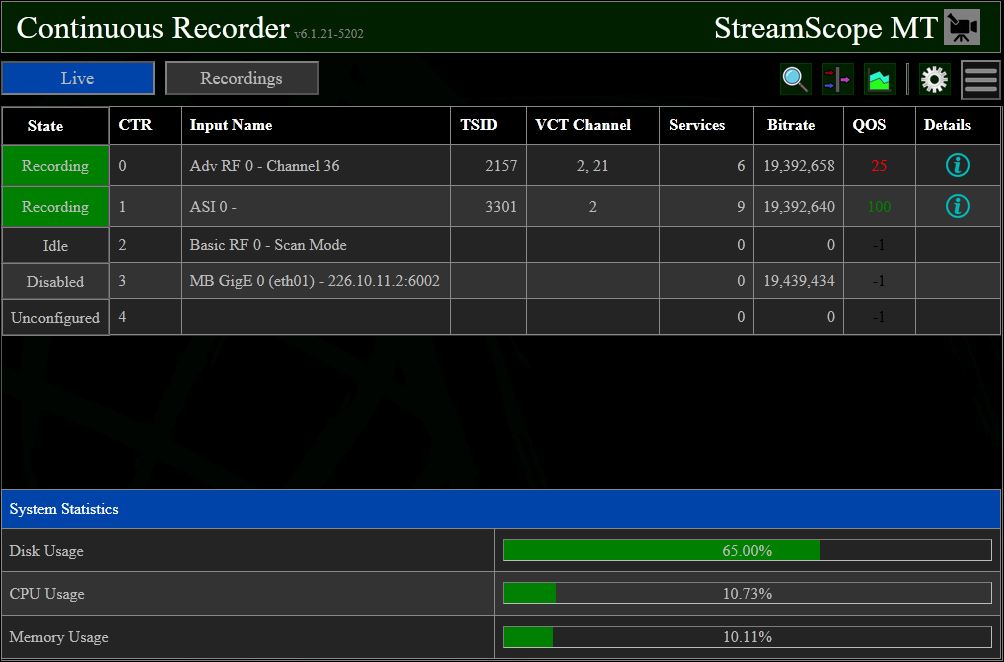

StreamScope MT-60 Continuous Recorder StreamScope MT-60 Web Analyzer
